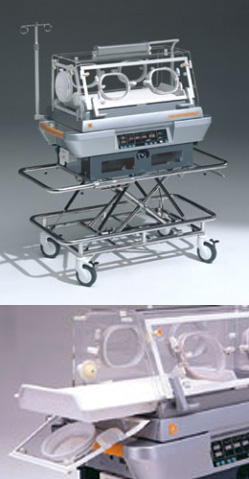

Atom Transcapsule V-808 (Transport Incubator)

Product Photo
Product Photo
The powerful warming capacity enables the incubator
  to maintain its air temperature at 34ºC or higher
  even when the ambient temperature is 0ºC. In
  addition, the double-wall hood minimizes the infant's
  heat loss due to radiation.

The head-end admittance panel and the drawer-type
  mattress platform enable functional treatment of the

The incubator is provided not only with an oxygen
  monitor and a skin temperature monitor but also
  with a built-in pulse oximeter.

A sub-battery lasting for 15 minutes or longer is built
  in the main body. The main battery can be detached
  to carry the incubator up or down the stairs or
  through a small space.

The 1500-lx fluorescent lamp provides enough clear
   light for observation and treatment even at night or
   in the dark.

The low-resilience mattress, which disperses the
  infant's body pressure effectively, reduces vibration
  to the infant.

The electrostatic filter, which is very efficient in
  collecting and retaining dust, keeps the environment

Atom Transcapsule V-808

      Transport Incubator

Power requirementsAC power source: Customer-specified
External DC power source : DC12V,
20A / DC24V, 10A
Temperature controlManual control
DimensionsMain body : 98(W)×49(D)×72(H) cm
Stand : 120(W)×52(D)×32-61(H) cm
Mattress : 62(W)×33(D)×3(T) cm
WeightMain body: Approx. 34kg
Mount: Approx. 27kg
Stand: Approx. 26kg
